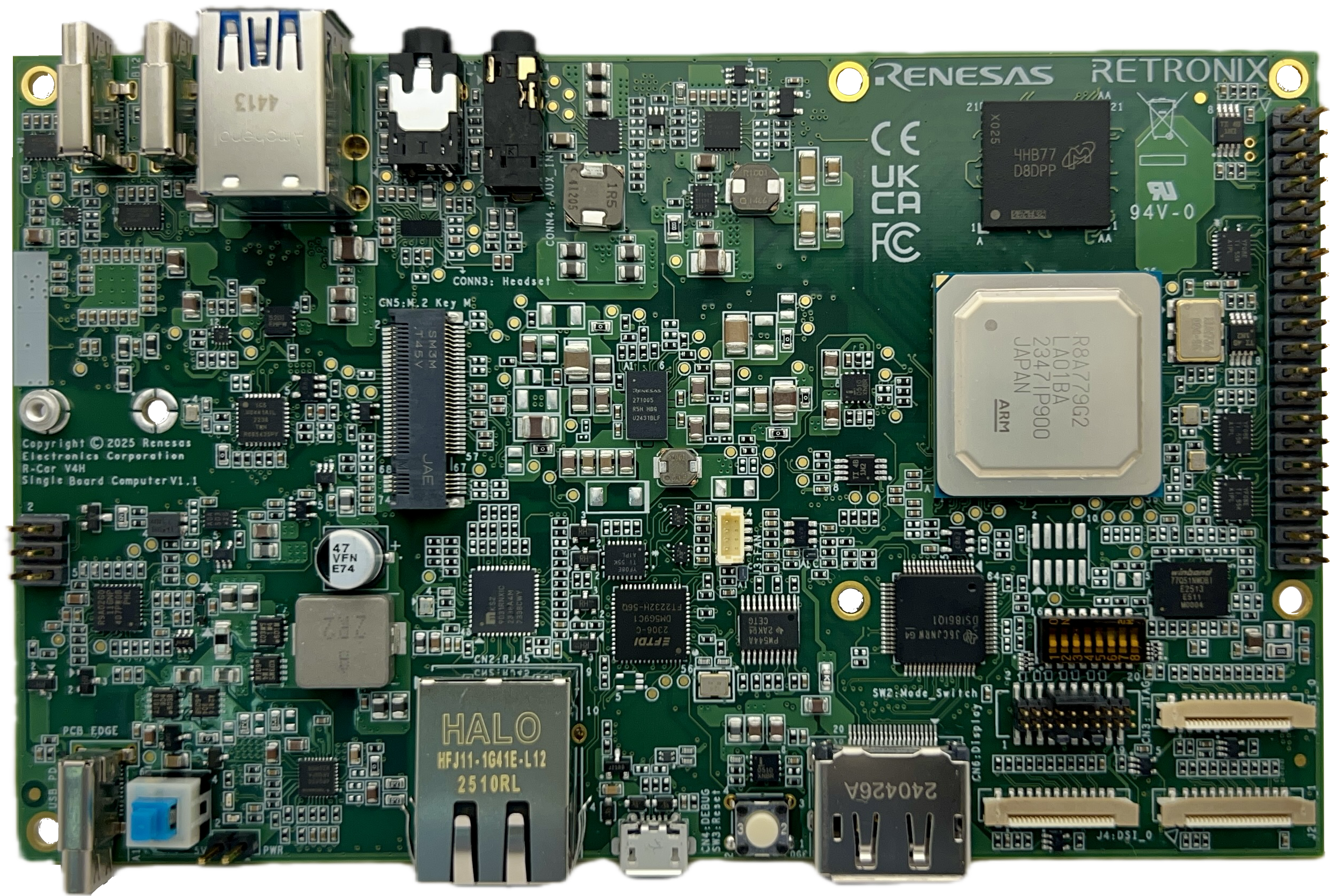

Sparrow Hawk R-Car V4H SBC

Single Board Computer

R-Car V4H SBC

"Sparrow Hawk"

R-Car V4H
v4h_sbc1 v4h_sbc2

Feature

  • Support Renesas R-Car V4H series Processor
  • 8GB/16GB DDR5 memory
  • GPU AXM-8-256 @ 600MHz, >150 GFLOPS
  • Automotive communicatioon: CAN、Ethernet AVB
  • PCIe Gen4 x 1
  • Computing power up to 34 tops
  • 100% OSS (Linux and related SW) based
  • Target Applications: Autonomous Mobile Manipulator, Smart Manufacturing, Smart Healthcare

Product Specification

  • Main

    • Processor Four ARM Cortex A76™ core 1.8GHz, Three ARM Cortex R52 core 1.4Ghz
    Memory LPDDR5 6400Mbps 8GB / 5500Mbps 16GB
    eMMC NAND Flash 64MB Security QSPI
    microSD Card Slot Support SD, SDHC, SDXC

  • I/O

    • Camera I/F 2x Raspberry Pi Camera
    Display 1x DP, 1x Raspberry Pi Display Connector
    Ethernet AVB 1 Port(1Gbps)
    Debug Serial 2 Port
    Audio In / Out
    PCIe 4.0 1x M.2 Key-M
    USB3.0 2x Type-C, 2x Type-A
    CAN-FD 2 Port
    Extensions Raspberry Pi 40-Pin Connector
    Power USB PD 20V

  • Environment

    • Operating Temperature 0°C ~ 85°C
    Humidity 5% - 95% Non-condensing

  • Dimension

    • Form Factor 146 X 90 mm

  • OS

    • Linux Yocto Linux

Accessory

  • Basic Kit: microSD Card 32GB
  • Complete Kit: microSD Card 32GB/RPi Fan Hat/USB PD Adapter/Debug Serial Cable
