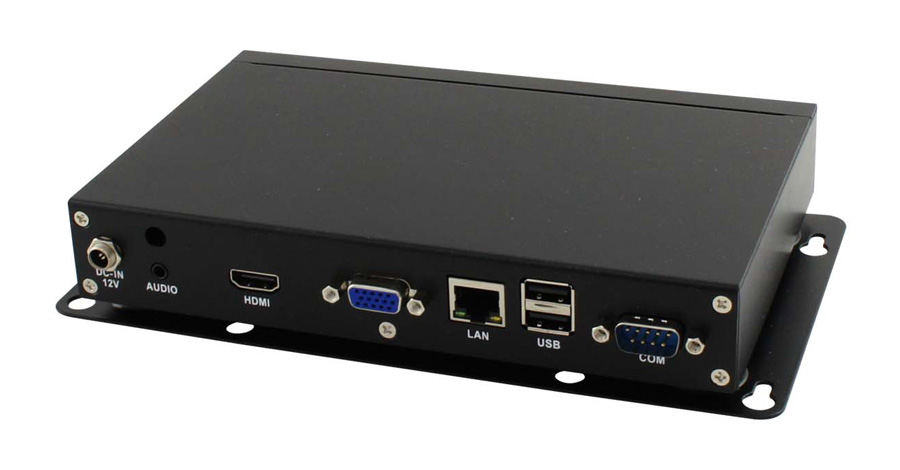

A6

M2M Gateway / Linux Box PC / Digital Signage Player

A6


應用範疇

製程設備稼動率優化

傳統製程管理以人工監測機台三色燈,即使採用SCADA系統三色燈看板還是被動等待問題發生。

瑞相科技IoT Gateway方案,可接軌重要設備與機台,進行製程節能與設備管理,達到能效與良率再提升,不但降低人力巡檢成本,還可即時遠端掌握機台狀態,且無需大費周章斥資汰換眾多設備,亦不需要停產實施,便能依循著最短路徑,加速實現工業4.0。




變壓器/配電/馬達/冰水機監測

變壓器異常將影響工廠電力運作、設備馬達遍故障時影像製程、電能相位不平衡造成的設備故障等,往往巡檢耗時費工。

瑞相科技IoT監測方案,可連結工廠變壓、電力、馬達、冰水機等輔助機具設備,隨時監測多點接地情況及自然老化數據,利用雲端監測可進行趨勢預測、並準確識別故障成因,以提早派工並精準維修處理。

智慧路燈

現行多數的城市路燈,仍需定期派設人力進行巡視、檢修。為了提升管理效率,藉由物聯網技術感測即時數據,採集路燈的運行狀況,便於路燈管理單位的維護。

瑞相科技 IoT Gateway以無線網路連結,可擷取感測器、攝影機、電子看板及求救系統等資訊,進而輔助路燈管理單位,提供更安全的道路環境及更便利的服務給市民 。

特點

  • Fan less Embedded Platform
  • Support Freescale i.MX6 Dual/Quad Processor
  • eMMC NAND Flash 4GB on board
  • DDR3 1066MHz on board Optional 1GB/2GB
  • VGA x 1, HDMI(w/o HDCP) x 1, 1GbE RJ45 LAN x 1
  • UART(RS232) x 1
  • Support Ant. Port SMA Connector x 1
  • Support SIM Card Slot x 1 (Option)
  • Support Wi-Fi 802.11 b/g/n (Option)
  • Min-USB(OTG) x 1, Type A USB x 3, SD Card Slot x 1
  • Easy DC 12V Power Input
  • Target Applications: M2M Gateway, Linux Box PC, Digital Signage Player

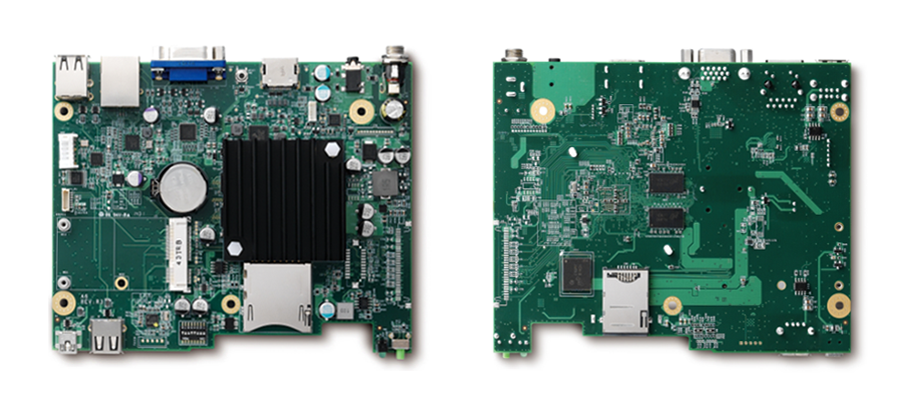

A6 Board



A6 Board 產品規格

  • Main

  • Processor Freescale ARM Cortex A9TM core i.MX6 1GHz Dual/Quad Core Processor
    Memory DDR3 1066MHz
    eMMC NAND Flash 4GB
  • I/O

  • Display VGA X1 (Option)
    HDMI X1
    Storage SDHC Slot X1
    USB HOST X2 (USB TYPE A)
    HOST X1 (USB TYPE A)
    OTG X1 (Mini USB TYPE B)
    FMC Mini PCIe/USB (Full Mini Card Form Factor)
    LAN Giga Ethernet X1 (up to 400Mbps)
    Audio 3.5mm Phone Jack X1
    I/O RS232C X1 (DB9 Connector)
    (Option, RS485 by a conversion board)
  • I/O

  • SIM Card Mini SIM Card Slot X1 (Option, for 3G module)
    Button Power Button X1
    LED Power Status LED X1 (Green)
    Antenna SMA Connector X1 (Option, for 3G/WIFI/BT Module)
  • Environment

  • Operating Temperature 0° C - 40° C
    Humidity 10% - 85%
  • Power

  • Adapter 12V 2A/100-240 VAC (Option as an accessory)
    Power Consumption Max 6W (default setting, without adding any extra option)
  • Housing Dimension

  • Size 195 x 123 x 33 mm

A6 Board SW 產品規格

  • OS

  • Android 4.2 or above
    Ubuntu 12.04 (Under Development)
    Linux Embedded Linux 3.6.35
  • SW Customization

  • AP Customization is possible
    API Customization is possible
    Kernel Customization is possible
    Driver Customization is possible

A6 系統認證

  • Certificate

  • FCC YES, Class A as default configuration
    CE YES, Class A as default configuration
    CB YES, as default configuration
    BSMI YES, as default configuration

All specifications and photos are subject to change without notice.
