Robust Fanless Embedded System with RISC-based (i.MX535) Processor
Access to Wireless M2M Applications
For the Japanese market, please click HERE to contact ALF.
AEG-300
Multi-Purpose IoT Gateway
Application
Transportation Cold Chain Monitoring
Cold Chain refers to a supply chain during which the cargo is kept in a well-controlled temperature. It’s very common in the food or pharmaceutical industry, because poor control of supply chain probably leads to contamination of food or drugs, or even causing serious illness or death.
Retronix Technologies provides a gateway for cold-chain management. We cooperating with partners offer low-temperature warehousing fleets, temperature and humidity sensors, and back-end dashboards for data collection, which monitors temperature change during transportation and transmits data to the fleet management center immediately.
Retronix Technologies provides a gateway for cold-chain management. We cooperating with partners offer low-temperature warehousing fleets, temperature and humidity sensors, and back-end dashboards for data collection, which monitors temperature change during transportation and transmits data to the fleet management center immediately.
Distributed Solar Plant Management
The solar energy is mostly applied in widely scattered or remoted regions that used to be maintained only by manual inspection. In order to improve management efficiency, it’s necessary to rely on IoT technologies to collect through sensors real-time data of devices, transmission status, conversion status, condition of the equipment in solar plants, which helps managers monitor equipment remotely.
Due to the complexity of the bottom layer of solar generation, the IoT gateway can collect the combiner boxes, inverters, AC cabinets, electric meters and weather detectors with various interfaces, as well as convert the multi-protocol and gather all the distributed data of solar generation to the cloud through network, which is convenient for managers to control remotely.
Due to the complexity of the bottom layer of solar generation, the IoT gateway can collect the combiner boxes, inverters, AC cabinets, electric meters and weather detectors with various interfaces, as well as convert the multi-protocol and gather all the distributed data of solar generation to the cloud through network, which is convenient for managers to control remotely.
Charging Stands Management for Electric Vehicles
In order to realize the vision of building a low-carbon city, governments will gradually ban gasoline and diesel vehicles, but promote electric vehicles run on the road instead, and actively build smart electric stands and promote smart energy trading and other services, to improve energy efficiency.
Mostly, charging stands of electric vehicles are scattered and disconnected with network, so it’s impossible to monitor the status of charging stands. IoT gateway can collect the usage information of each charging stand, then all the data are collected and smart electric network are constructed so that electric can be deployed at peak-time or off-peak time between consumers and enterprises in electric industry or electric vehicle industry, and the charging points can be searched out quickly as well.
Mostly, charging stands of electric vehicles are scattered and disconnected with network, so it’s impossible to monitor the status of charging stands. IoT gateway can collect the usage information of each charging stand, then all the data are collected and smart electric network are constructed so that electric can be deployed at peak-time or off-peak time between consumers and enterprises in electric industry or electric vehicle industry, and the charging points can be searched out quickly as well.
Feature
Multi-purpose M2M Communication Gateway
- Wired Connection via LAN, RS485 (RJ-11 jack)
- Wireless Connection via 3G/GPS & WiFi/BT
- Voice Communication via VOIP
- Special Internal Antennas Design for 3G & WiFi/BT
- Wide Operational Temp -20°C - 70°C
- Special Vibration & Shock for the Trucks Endurance Design
Eco and User Friendly
- No Noise, No Fan, Low Power Consumption and 24/7 Fan less Design
- A Flip door for 3G Mini SIM Card for Vandal & Tampering Protection
- Remote SW Update via a LAN, WiFi or 3G Connection
- Manual Firmware/SW Update via a USB Flash Drive
Cloud Service and Friendly APIs
- Remote SW Update via LAN WiFi or 3G (optional)
- Friendly APIs for Application Development
AEG-300 Model Selection
| Full model | WB model | |
|---|---|---|
| Wireless connection | 3G/GPS | --- |
| WiFi/BT | ||
| Wired connection | LAN | |
| RS485(RJ-11Jack) | ||
Specification
| Category | Full model | WB model | ||
|---|---|---|---|---|
| CPU/Memory |
FreescaleARM Cortex A8™ core MCIMX535DVV1C 1GHz DDR3 RAM: 512MB eMMC NAND Flash: 4GB |
|||
| OS | Linux 2.6.35 | |||

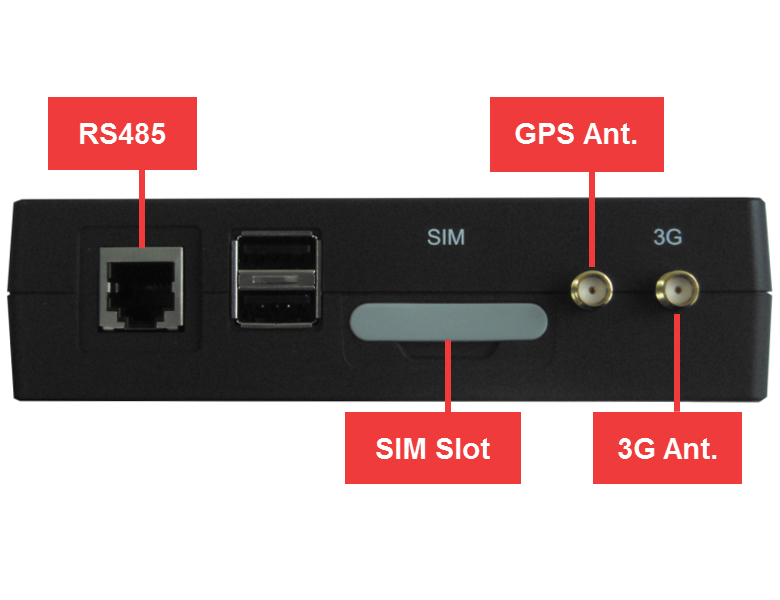

| I/O Ports | UART:D-sub 15pins with Smart Design with Power in 9~24 DC USB2.0: Dual Dock Type A Host LAN: RJ45 10/100Base-T with LEDs RJ-11: Support RS485 (2 wires) |
|||
| 3G function (Cinterion PH8-P) | 3G Band With mini SIM card slot | Five Bands UMTS/HSPA+ (WCDMA/FDD) (850/800/900/1900/2100 MHz) Quad-Band GSM (850/900/1800/1900 MHz) | --- | |
| 3G Internal antenna | Built-in(Default) | --- | ||
| 3G External antenna | SMA-P connector | --- | ||
| GPS function(Cinterion PH8-P) | SatNav system | Standalone GPS and GLONASS | --- | |
| GPS External antenna | SMA-P connector | --- | ||
| WiFi/BT function | IEEE 802.11b/g/n & BT3.0/4.0 with built-in chip antenna | |||
| LED status indicators (G/R/O tri-color) | Power Status | Link Status (3G Status) | ||
| WiFi/GPIO | BT/GPIO | |||
| Data Status | Func Status | |||
| Buzzer | Controlled by GPIO | |||
| Power consumption | Low power consumption 5.4W (12V/0.45A) |
Low power consumption 4.56W (12V/0.38A) |
||
| Power adaptor | Input :AC 100 - 240V / Output :DC 12V 2A | |||
| Certification | CE / FCC | |||
| Environmental | Operation Temperature : -20°C - 70°C Storage Temperature : -35°C - 85°C Relative Humidity: (20% - 85%)Non-condensing |
|||
| Mechanical | Dimensions: 125mm x 125mm x 35mm (W x H x D) Mounting: Desk/ Din Rail/ VESA 50 x 50mm Weight: 272g ± 5g |
|||
