Through the panoramic surround-view system, driver can clearly grasp environment of the vehicle.
The R-Car V3H2 SoC enhances the deep learning performance of smart cameras, achieving Level 2+ capability. It is suitable for driver and passenger monitoring systems (DMS/OMS), automotive front cameras, surround view, and automated parking application. This SoC combines real-time sensors with ASIL C level certification and smart vision, providing OEMs and Tier 1 with a high-performance, low-power solution。
Surround View System

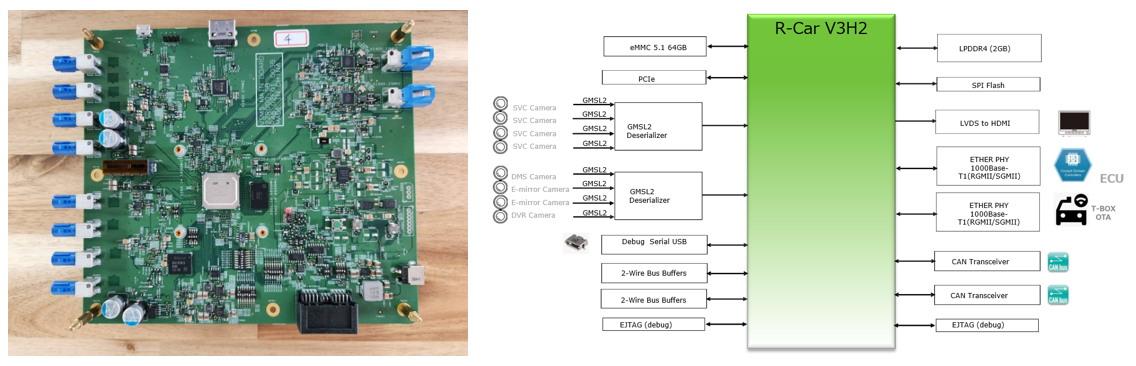

SVM Board
Renesas R-Car V3H2 Processor
Feature
ADAS system
- Multi camera inputs: Support up to 8 camera
- Support rich peripheral driver
- ISP tuning for camera application
- IMR function for surround view application
- Powerful IMP (Computer Vision) implement for image recognition
Safety
- Supporting metric targets for ASIL B (sensor layer, application processors) and ASIL C (realtime domain) safety goals
Specification
| CPU/Memory |
Four 1.0GHz Arm® Cortex®-A53 MPCore™ cores Dual lockstep 800MHz Arm® Cortex®-R7 core Dual image signal processor (ISP) 2GB LPDDR4 64GB eMMC |
|||
|---|---|---|---|---|
| OS | Yocto 3.1.3 | |||
| I/O Ports |
HDMI out x1 Gigabit Ethernet(T1 PHY) x1 AVB Ethernet(T1 PHY) x1 Camera interface(Fakra) x4 Camera interface(HSD) x4 CAN x2 Micro USB x1 PCIe x1 |
|||
| System Feature |
Integrated ISP with up to 8 Mpixel sensors, RGB-IR support Image recognition engine (IMP-X5-V3H) Dedicated hardware accelerator for CNN |
|||
| Power adaptor | Input :DC 12V 4A | |||
| Mechanical | Dimensions: 190mm x 170mm (W x H) | |||
