AWS IoT Greengrass is software that links to AWS IoT Core. With AWS IoT Greengrass, the connectivity devices can perform AWS Lambda functions, perform predictions based on the learning models, and keep data on the devices synchronized, so as to securely communicate with other devices even if they haven’t connected to the Internet.
What is AWS IoT Greengrass ?
Why Choose Retronix’s Gateway Solution for AWS Greengrass Deployment ?
Certified by AWS
The solution certified by AWS IoT Greengrass, it can be widely used in smart energy, smart retails, smart city, smart linguistics and smart industry.
Precise Positioning
The Global Navigation Satellite System (GNSS) increases the reliability and accuracy of positioning and improves the positioning efficiency of a city.
Fast Implementation
It is a mature Gateway solution certified by AWS IoT Greengrass that assists IoT integration vendors in reducing the delivery time as well as the period of development.
i.MX6 PICO
Standard / Extended Temperature
Single Board Computer in Pico-ITX Form Factor
with Freescale® ARM® Cortex®-A9 Core i.MX6 Processor
Application
Logistics Transportation and Distribution Monitoring
Logistics includes transportation, warehousing, distribution, etc., and it’s important to make the entrusted cargos delivered efficiently.
Required for transportation and distribution of cargos in logistics industry, Retronix Technologies provides IoT Fleet Network Monitoring technology that confirms the location, speed, weight of the vehicle at any time, so as to confirm the fleet delivery schedule, delivery rate, punctuality rate, and dispatch the delivery routes of transportation more efficiently.
Required for transportation and distribution of cargos in logistics industry, Retronix Technologies provides IoT Fleet Network Monitoring technology that confirms the location, speed, weight of the vehicle at any time, so as to confirm the fleet delivery schedule, delivery rate, punctuality rate, and dispatch the delivery routes of transportation more efficiently.
Smart Vending Machines
The vending machines in the past are used in the closed system while the new type is used in an open platform which absorbs products of various enterprises as well as add more functions such as audio/video playback and human flow identification, and etc.
The smart vending machines help enterprises get remote data about purchasing-selling-stocking status of each machine so that goods can be replenished timely, in that case, efficiency is improved while labor cost is reduced. Moreover, the audio/video playback and human flow identification solutions can also be used for marketing data collection and program planning.
The smart vending machines help enterprises get remote data about purchasing-selling-stocking status of each machine so that goods can be replenished timely, in that case, efficiency is improved while labor cost is reduced. Moreover, the audio/video playback and human flow identification solutions can also be used for marketing data collection and program planning.
Precise Positioning of Snow-shoveling Trucks
For those who live in high-latitudes, the importance of snow-shoveling is self-evident. Usually on a duty-day after heavy snowfall, urban traffic jam tends to happen if snow on roads has not been cleaned in time.
The gateway required by the snow-shoveling trucks of Retronix Technologies can precisely positions the trucks, and help quickly remove snow from roads under bad visibility or heavy-snow roads.
The gateway required by the snow-shoveling trucks of Retronix Technologies can precisely positions the trucks, and help quickly remove snow from roads under bad visibility or heavy-snow roads.
Feature
- Freescale® ARM® Cortex®-A9 Core i.MX6 series Processor
- 1GB/2GB DDR3 1066 memory
- 4GB/8GB eMMC NAND Flash onboard, 1x Micro-SD Card Cage for storage
- 1x LVDS (18/24-bit Dual or Single Channel support), 1x HDMI for video output
- 2x LAN, 1x mPCIe, 1x Micro-SIM Card Cage for network connection
- 3x USB2.0, 1x USB OTG, 2x COM, 1x GPIO/SPI/I2C, 1x CAN for peripheral connection
- Extended temperature model available: -40°C ~ 85°

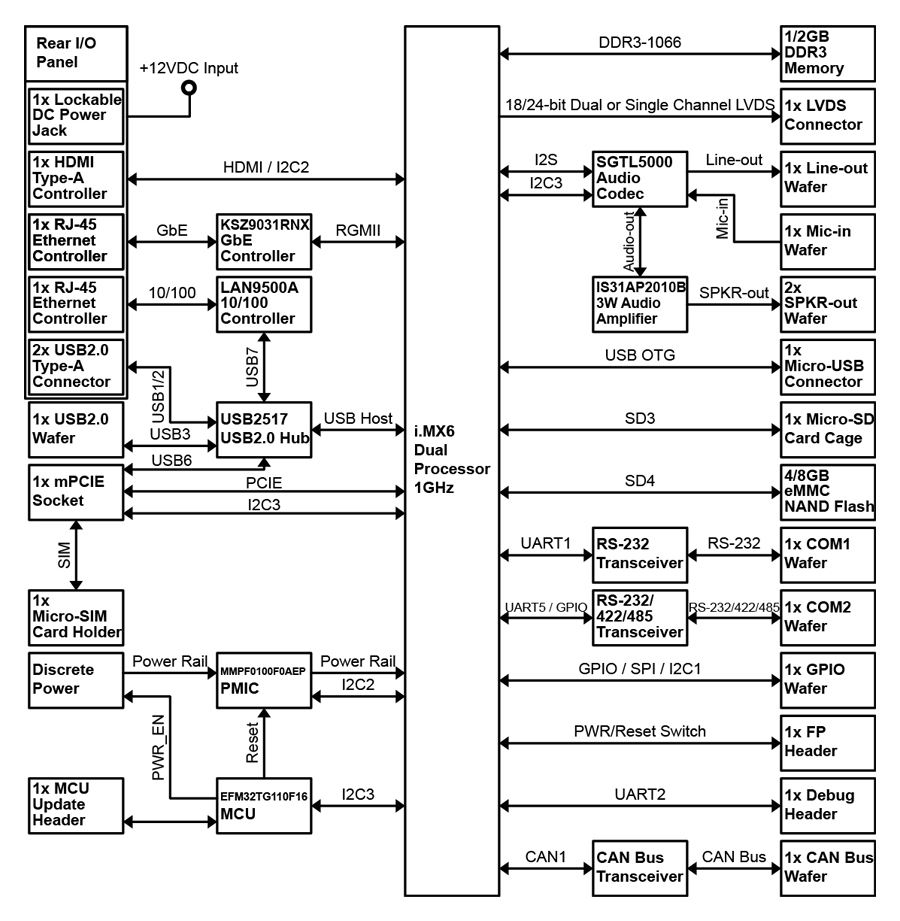

Product Overview
RTX-PIMX6 Series is a Pico-ITX single board computer based on Freescale® ARM® Cortex®-A9 Core i.MX6 Series Processor. It features ultra-small and compact form factor, low power consumption, fanless architecture and extended operating temperature range for partial models.
In addition to HDMI, USB and serial ports, it provides a highly flexible connectivity option for GPIO / SPI / I2C, CAN bus and allows connection to many off-the-shelf peripherals. Thus, it is an ideal platform to easily generate small, portable or mobile embedded devices used in every possible environment and application, such as automotive infotainment,telematics, healthcare, thin clients or HMI.
In addition to HDMI, USB and serial ports, it provides a highly flexible connectivity option for GPIO / SPI / I2C, CAN bus and allows connection to many off-the-shelf peripherals. Thus, it is an ideal platform to easily generate small, portable or mobile embedded devices used in every possible environment and application, such as automotive infotainment,telematics, healthcare, thin clients or HMI.
Technical Information
| CPU Support | Freescale® ARM® Cortex®-A9 Core i.MX6 Series Processor
(Dual/Quad Core, 1M Cache, 1 GHz, 3.5W TDP) |
|---|---|
| Memory | 1GB/2GB DDR3-106 SI-DIMM Onboard |
| Storage | 4GB/8GB eMMC NAND Flash onboard
1x Micro-SD Card Cage (on right) |
| Display Interface | 1x LVDS (18/24-bit, 1/2-ch, 1920 x 1200 @ 60Hz)
1x HDMI (1920 x 1080 @ 30Hz, on rear) Dual Display |
| Audio Chipset | Freescale SGTL5000 |
| Audio Interface | 2x Speaker-out (3W, ISSI IS31AP2010B)
1x Line-out (by header) 1x Mic-in (by header) |
| Ethernet | 2x RJ-45 (on rear, 1x Micrel KSZ9031RNX, 1x Microchip LAN9500A) |
| USB | 3x USB2.0 (2x Type A on rear, 1x by header)
1x USB OTG (Micro-USB on right) |
| Serial Port | 1x RS-232/422/485 (by header)
1x RS-232 (by header) |
| Other I/O Port | 1x GPIO / SPI / I2C
1x CAN Bus |
| Expansion | 1x mPCIe Socket
1x Micro-SIM Card Cage |
| Power Supply | Connector: Lockable DC Jack (on rear)
Input Voltage: DC 12V |
| System Control & Monitor | 1x Header for Front Panel (Power / Reset Switch) |
| Cooling | Fanless |
| OS Support | Linux 3.10.53
Android 4.4 Ubuntu 12.04 |
| Dimension | Pico-ITX (100 x 72 mm / 3.94" x 2.83") |
| Mechanical Characteristics | Operation Temp.: 0ºC ~ 60ºC / 32ºF ~ 140ºF (Standard)
-40ºC ~ 85ºC / -40ºF ~ 185ºF (Extended) Storage Temp.: -20ºC ~ 80ºC / -4ºF ~ 176ºF (Standard) -55ºC ~ 85ºC / -67ºF ~ 185ºF (Extended) Humidity: 0% ~ 95% |
| Certification | CE, FCC Class A |

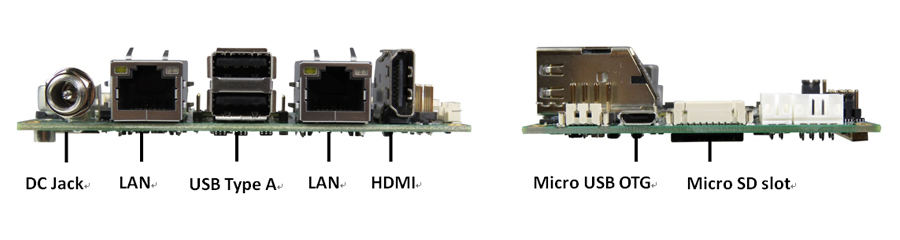

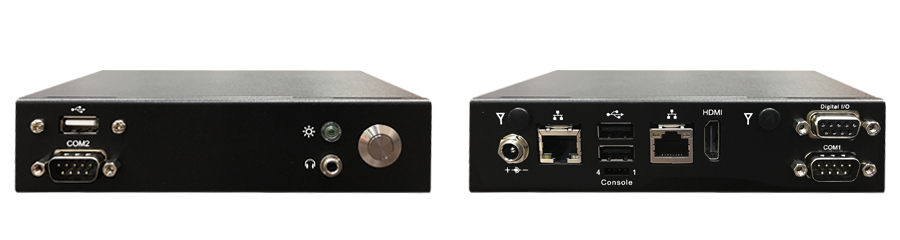

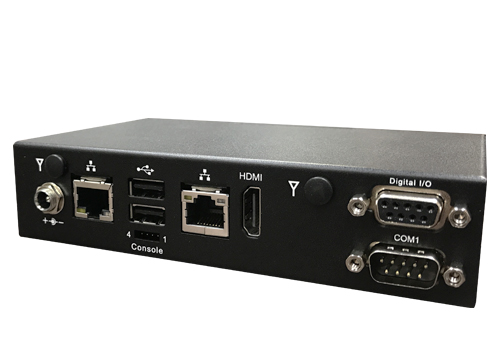

RTX-PIMX6 series I/Os
