Providing a safe and convenient driving experience。
The R-Car System-on-Chip (SoC) realizes the integration of map, image, and video inputs from user-preferred devices (including smartphones and other peripherals), and support multi-display output. It built-in security features facilitate secure over-the-air (OTA) software updates, and the robust computing capabilities of the R-Car enable advanced communication services.
In-Vehicle Infotainment System

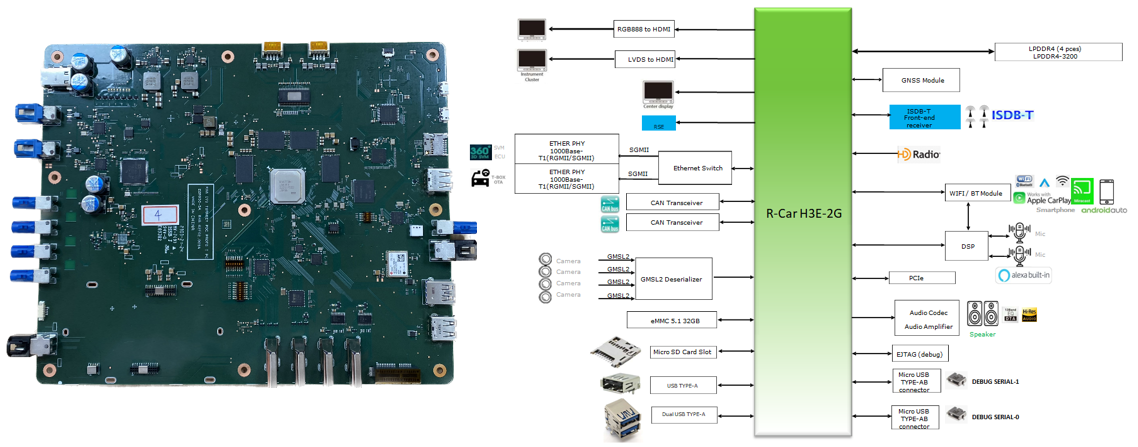

IVI Board
Renesas R-Car H3E Processor
Feature
In-Vehicle Infotainment system
- Multi video outputs: Support 4 display outputs
- Powerful 2D/3D GPU implement for display
- Support Android/Linux OS
- Support RealTime OS for quick boot and failsafe
- Support rich peripheral driver
Safety
- Compliant with ISO 26262 (ASIL-B) functionality safety standard for automotive
Specification
| CPU/Memory |
Four Arm® Cortex®-A57 Quad Four Arm® Cortex®-A53 Quad Arm® Cortex®-R7 Dual lockstep 32GB LPDDR4 64GB eMMC |
|||
|---|---|---|---|---|
| OS | Android Automotive 10 | |||
| I/O Ports |
LVDS out x1 HDMI out x2 HDMI in x1 Gigabit Ethernet(T1 PHY) x1 AVB Ethernet(T1 PHY) x1 Camera interface(Fakra) x4 CAN x2 USB x2 PCIe x1 Line out x1 Mic in x1 |
|||
| System Feature |
IMG PowerVR Series6XT GX6650 Distortion compensation module x 4 ch (IMR-LSX4) Video image processing (up and down scaling, dynamic γ correction, color space conversion, I/P conversion, super resolution processing, rotation, visual near lossless image compression) |
|||
| Power adaptor | Input :DC 12V 4A | |||
| Mechanical | Dimensions: 220mm x 200mm (W x H) | |||
