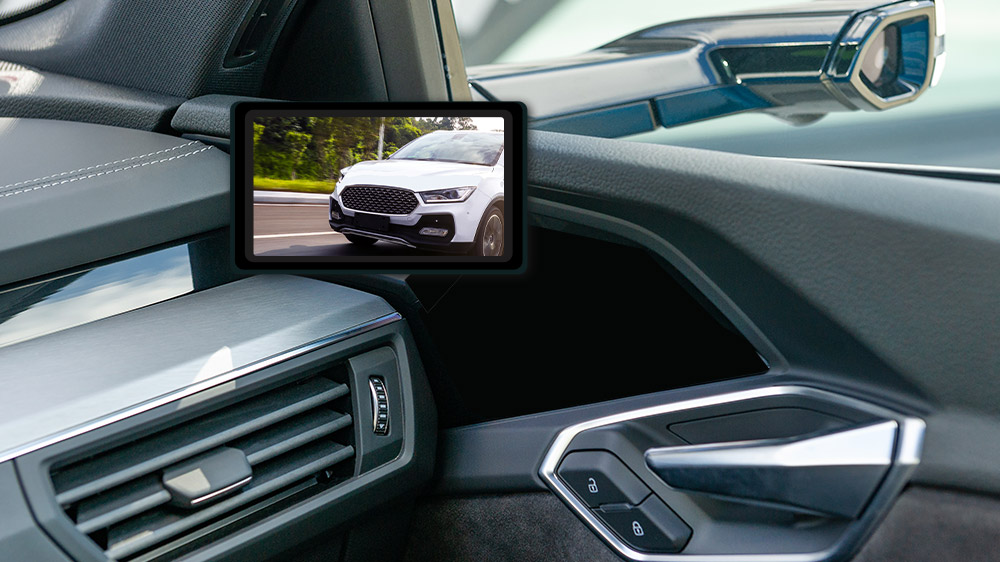

透過車輛外側兩端安裝的左右攝像頭，為駕駛提供即時影像。分別顯示近距離與廣角視角，消除車身兩側下方及側後方的視覺盲區，適時呈現車輛所需要的影像至電子顯示屏，輔助駕駛操作車輛。
R-Car V3H SoC明顯改善智慧相機的深度學習性能，達到Level 2+等級，適用於一般車輛的駕駛和乘客監測系統(DMS/ OMS)、汽車前鏡頭、環景和自動停車。此SoC結合ASIL C等級的即時感測器融合，和針對智慧機器視覺最佳化的架構，為OEM和Tier 1提供高性能、低功耗的解決方案。
兩側電子後照鏡系統

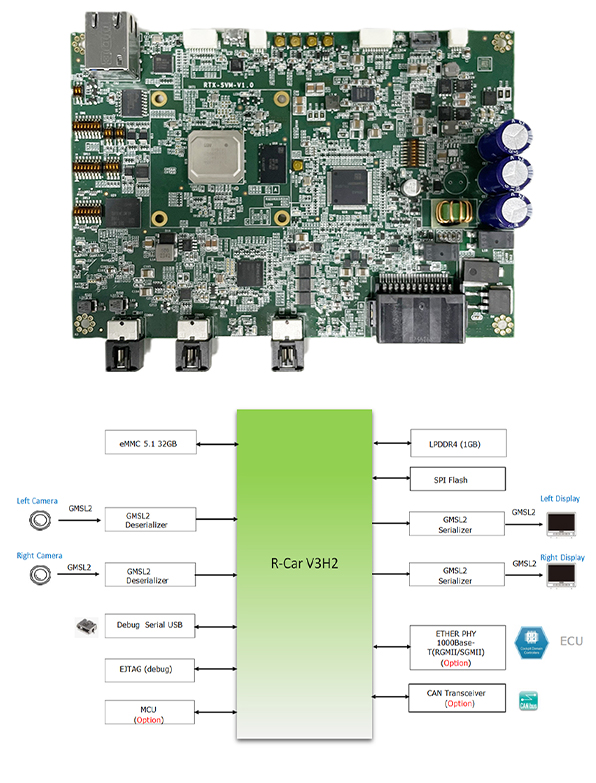

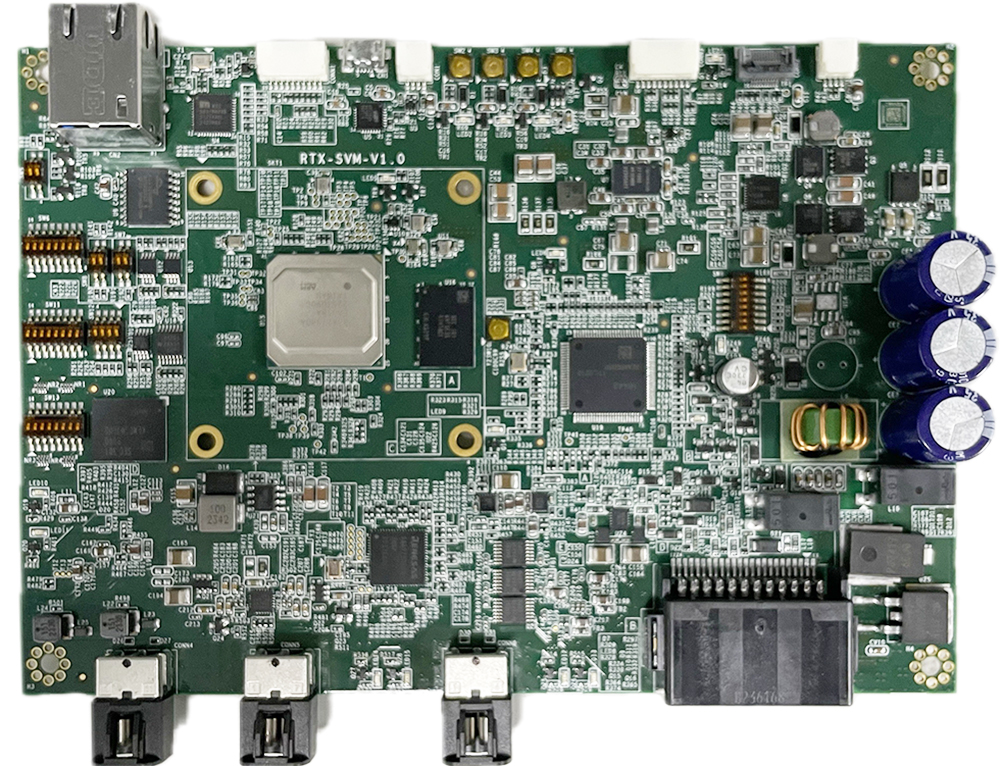

Side CMS板卡

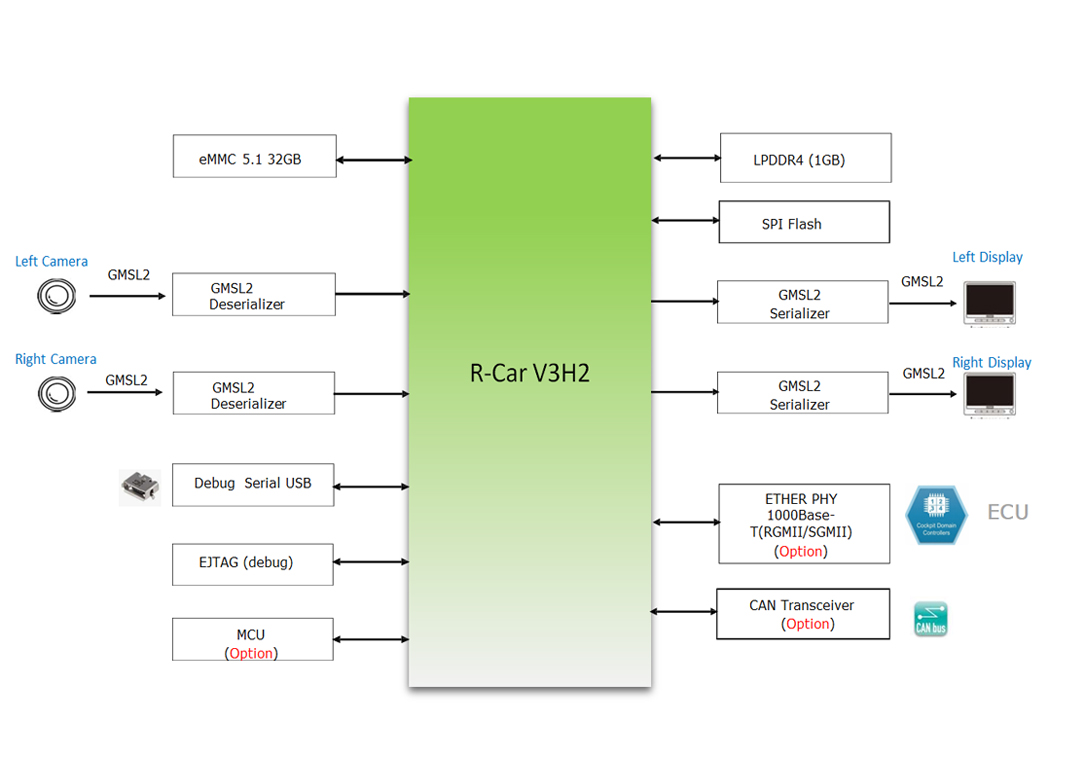

Renesas R-Car V3H2 Processor
特點
SCMS system
- Up to two high resolution camera input(3M@60FPS)
- Up to two 1280 x 960 resolution(60 FPS) display output
- Support ISP tuning for image quality adjustment
- Support multi-view switching function
- AI Blind Spot Detection(BSD) System
- Low latency(camera to display): <100ms
Safety
- Supporting metric targets for ASIL B (sensor layer, application processors) and ASIL C (real-time domain) safety goals
產品規格
| CPU/Memory |
Four 1.0GHz Arm® Cortex®-A53 MPCore™ cores Dual lockstep 800MHz Arm® Cortex®-R7 core Dual image signal processor (ISP) 1GB LPDDR4 32GB eMMC |
|||
|---|---|---|---|---|
| OS | QNX/Linux | |||
| I/O Ports |
Video output x2 Gigabit Ethernet(1000Base T) x1 Camera interface(Fakra) x4 CAN x1 Micro USB x1 |
|||
| System Feature |
Integrated ISP with up to 8 Mpixel sensors, RGB-IR supported Image recognition engine (IMP-X5-V3H) Dedicated hardware accelerator for CNN |
|||
| Power Source | Input :DC 13V 2.5A | |||
| Mechanical | PCBA Dimensions: 170mm x 120mm (W x H) | |||
