顯示車載的資訊以及提供多樣的影音娛樂，為駕駛提供安全又便利的駕駛體驗。
R-Car SoC實現了將地圖、圖片和影像輸入從使用者預設的裝置(包含智慧型手機和其他裝置中)顯示於座艙螢幕上，透過觸控功能來控制螢幕，以麥克風輸入進行語音控制，並將聲音輸出至多聲道喇叭上。其頂尖的內建保全功能可安全地進行空中下載(OTA)軟體更新，並由R-Car強大的運算效能提供先進的通訊服務。
車載資訊娛樂系統

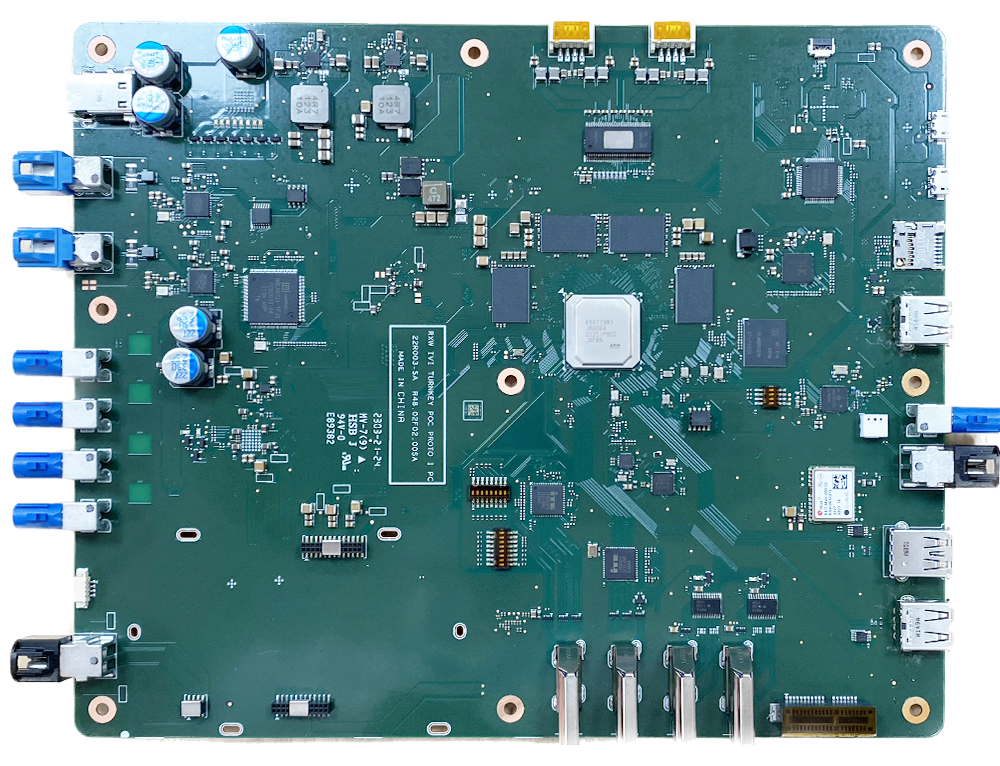

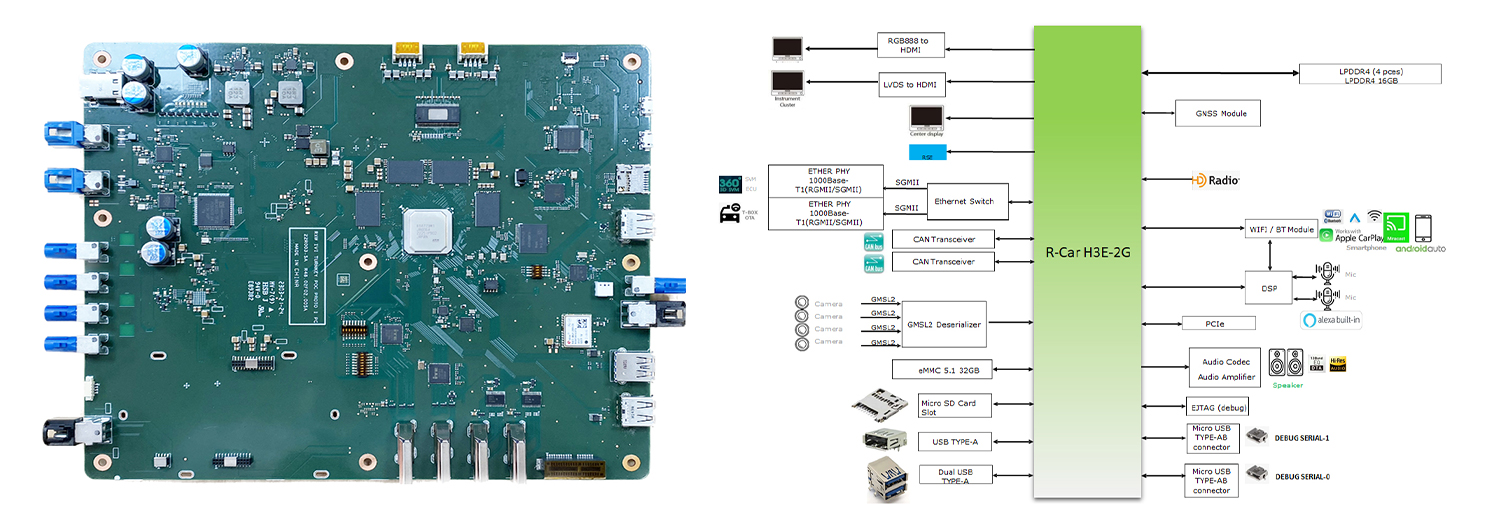

IVI板卡
Renesas R-Car H3E Processor
特點
In-Vehicle Infotainment system
- Multi video outputs: Support 4 display outputs
- Powerful 2D/3D GPU implement for display
- Support Android/Linux OS
- Support Real-Time OS for quick boot and failsafe
- Support rich peripheral driver
Safety
- Compliant with ISO 26262 (ASIL-B) functionality safety standard for automotive
產品規格
| CPU/Memory |
Four Arm® Cortex®-A57 Quad Four Arm® Cortex®-A53 Quad Arm® Cortex®-R7 Dual lockstep 16GB LPDDR4 32GB eMMC |
|||
|---|---|---|---|---|
| OS | Android Automotive 11 | |||

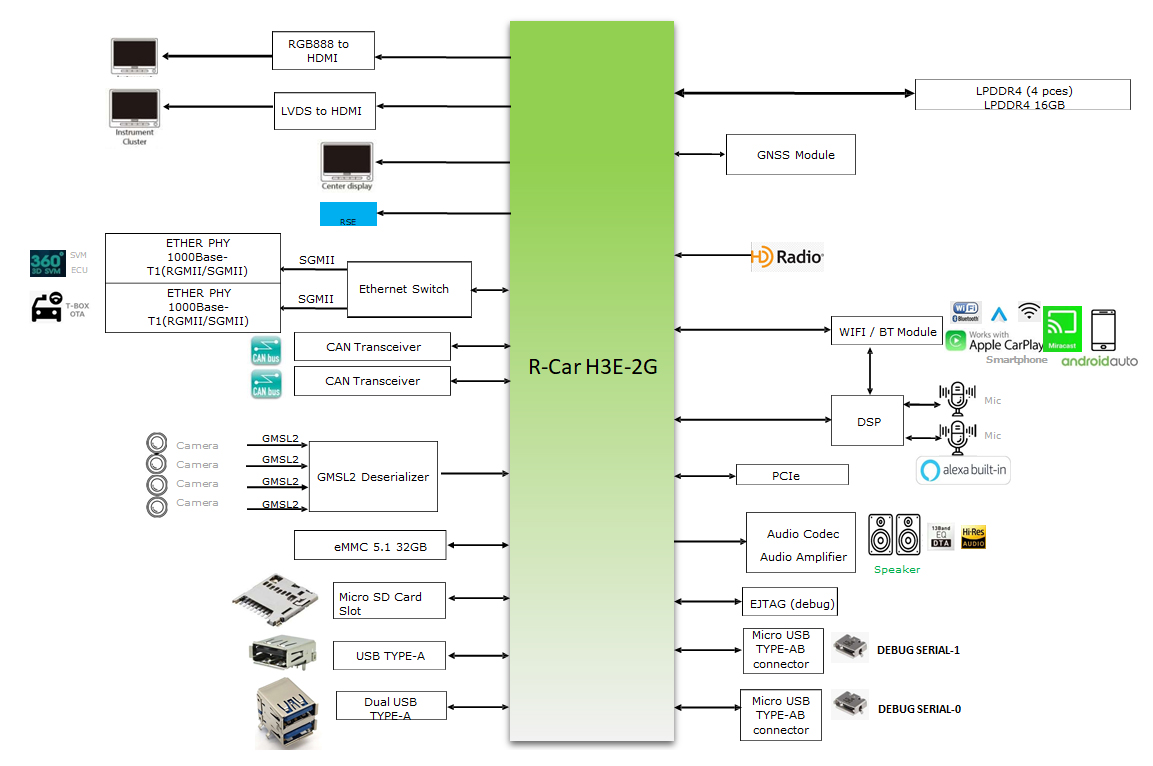

| I/O Ports |
LVDS out x1 HDMI out x2 Gigabit Ethernet(T1 PHY) x1 AVB Ethernet(T1 PHY) x1 Camera interface(Fakra) x4 CAN x2 USB x2 PCIe x1 Line out x1 Mic in x1 |
|||
| System Feature |
IMG PowerVR Series6XT GX6650 Video image processing (up and down scaling, dynamic γ correction, color space conversion, I/P conversion, super resolution processing, rotation, visual near lossless image compression) |
|||
| Power adaptor | Input :DC 12V 4A | |||
| Mechanical | Dimensions: 220mm x 200mm (W x H) | |||
