Feature

  • Freescale® ARM® Cortex®-A9 Core i.MX6 series Processor
  • 1GB/2GB DDR3 1066 memory
  • 4GB/8GB eMMC NAND Flash onboard, 1x Micro-SD Card Cage for storage
  • 1x LVDS (18/24-bit Dual or Single Channel support), 1x HDMI for video output
  • 2x LAN, 1x mPCIe, 1x Micro-SIM Card Cage for network connection
  • 3x USB2.0, 1x USB OTG, 2x COM, 1x GPIO/SPI/I2C, 1x CAN for peripheral connection
  • Extended temperature model available: -40°C ~ 85°

Product Overview

RTX-PIMX6 Series is a Pico-ITX single board computer based on Freescale® ARM® Cortex®-A9 Core i.MX6 Series Processor. It features ultra-small and compact form factor, low power consumption, fanless architecture and extended operating temperature range for partial models. In addition to HDMI, USB and serial ports, it provides a highly flexible connectivity

option for GPIO / SPI / I2C, CAN bus and allows connection to many off-the-shelf peripherals. Thus, it is an ideal platform to easily generate small, portable or mobile embedded devices used in every possible environment and application, such as automotive infotainment,telematics, healthcare, thin clients or HMI.


Technical Information

  • CPU Support Freescale® ARM® Cortex®-A9 Core i.MX6 Series Processor
    (Dual/Quad Core, 1M Cache, 1 GHz, 3.5W TDP)
    Memory 1GB/2GB DDR3-106 SI-DIMM Onboard
    Storage 4GB/8GB eMMC NAND Flash onboard
    1x Micro-SD Card Cage (on right)
    Display Interface 1x LVDS (18/24-bit, 1/2-ch, 1920 x 1200 @ 60Hz)
    1x HDMI (1920 x 1080 @ 30Hz, on rear)
    Dual Display
    Audio Chipset Freescale SGTL5000
    Audio Interface 2x Speaker-out (3W, ISSI IS31AP2010B)
    1x Line-out (by header)
    1x Mic-in (by header)
    Ethernet 2x RJ-45 (on rear, 1x Micrel KSZ9031RNX, 1x Microchip LAN9500A)
    USB 3x USB2.0 (2x Type A on rear, 1x by header)
    1x USB OTG (Micro-USB on right)
    Serial Port 1x RS-232/422/485 (by header)
    1x RS-232 (by header)
    Other I/O Port 1x GPIO / SPI / I2C
    1x CAN Bus
    Expansion 1x mPCIe Socket
    1x Micro-SIM Card Cage
    Power Supply Connector: Lockable DC Jack (on rear)
    Input Voltage: DC 12V
    System Control & Monitor 1x Header for Front Panel (Power / Reset Switch)
    Cooling Fanless
    OS Support Linux 3.10.53
    Android 4.4
    Ubuntu 12.04
    Dimension Pico-ITX (100 x 72 mm / 3.94" x 2.83")
    Mechanical Characteristics Operation Temp.: 0ºC ~ 60ºC / 32ºF ~ 140ºF (Standard)
    -40ºC ~ 85ºC / -40ºF ~ 185ºF (Extended)
    Storage Temp.: -20ºC ~ 80ºC / -4ºF ~ 176ºF (Standard)
    -55ºC ~ 85ºC / -67ºF ~ 185ºF (Extended)
    Humidity: 0% ~ 95%
    Certification CE, FCC Class A

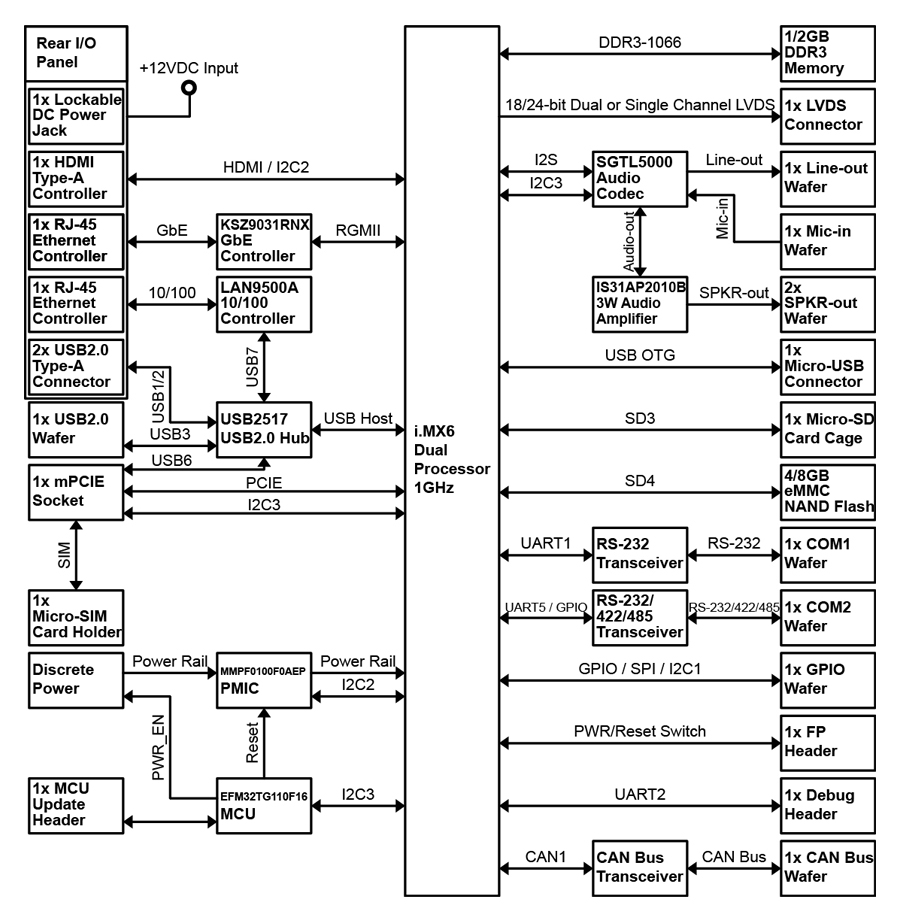

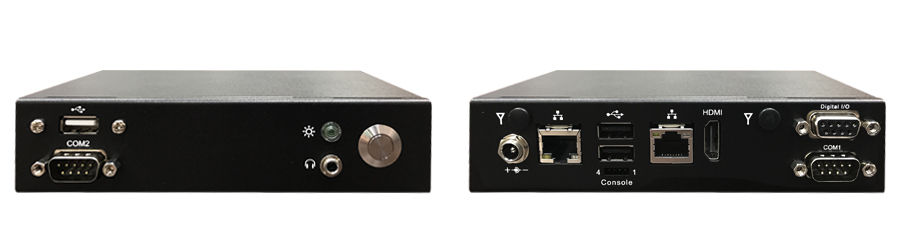

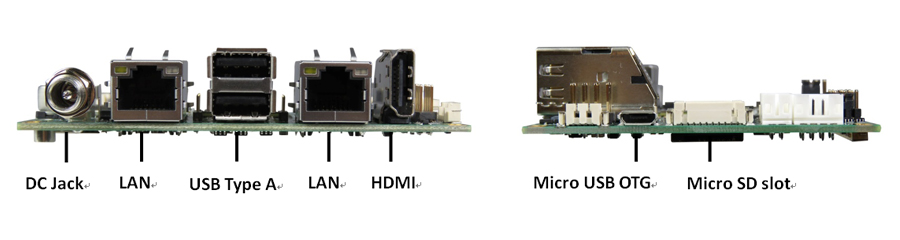

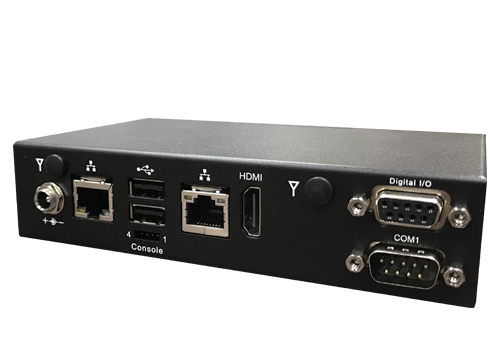

RTX-PIMX6 series I/Os
